Electronic displays, batch controllers, and flow computers in various designs for mounting on the meter or as remote versions are available.
The electronics are available in different versions and for use in the zones, ATEX, IECEx, FM, and CSA.
Displays and Batch
Contollers
- Pulse inputs, reed, NPN/PNP Pulse, coil, (0)4 - 20 mA
- Signal outputs, scaled pulses, transistor outputs NPN / PNP, relay output, alarm outputs,
- Analog output 4 - 20 mA or 0 - 10 V DC
- Power supply, Lithium AA battery and 10 - 30 V DC, 4-20 mA, 8 - 24V AC/DC, 115 - 230 V AC., standard:
- 8 - 30 V DC, sensor supply 3.2, 8.2, 12, 24 V DC
- Explosion-proof according to ATEX, IECEx, FM and CSA C-US
- Robust IP65 / IP67 field, wall or measuring instrument housing
- Bright LED backlight
- Temperature range: -40 °C to + 80 °C
- Communication protocols: Modbus ASCII / RTU
- Interface: RS232 / RS485 2-wire or 4-wire / TTL.
Electronic display units, dosing control units and flow computers for different areas of use and applications. Can be combined with various mechanical and electronic flowmeters. It is possible to control and integrate valves, pressure sensors and level sensors into one system.
Different input like pulse signals can be processed. The output signals are available as analogue or digital outputs and in addition different communication protocols are available.
- Housing materials, plastic, aluminium and stainless steel
- Application-oriented design also for truck assembly.
- Full integration and control of a Coriolis mass flow meter possible
- Extensive logging of process data, events and error handling
- Large graphical user interface
- Bright backlight for good readability by day and night
- Multiple languages are supported
- Configuration structure "Know one, know them all
- Automatic backup of settings and running totals.
- Display shows the current flow rate, total and accumulated total.
- LED backlight optional
IN OUR PORTFOLIO
Company STIX Durchflussmesstechnik is distributor of Great Plaines Industries (GPI) and its subsidiary Flomec.
Displays
Q9 Display - RATE / TOTALIZER

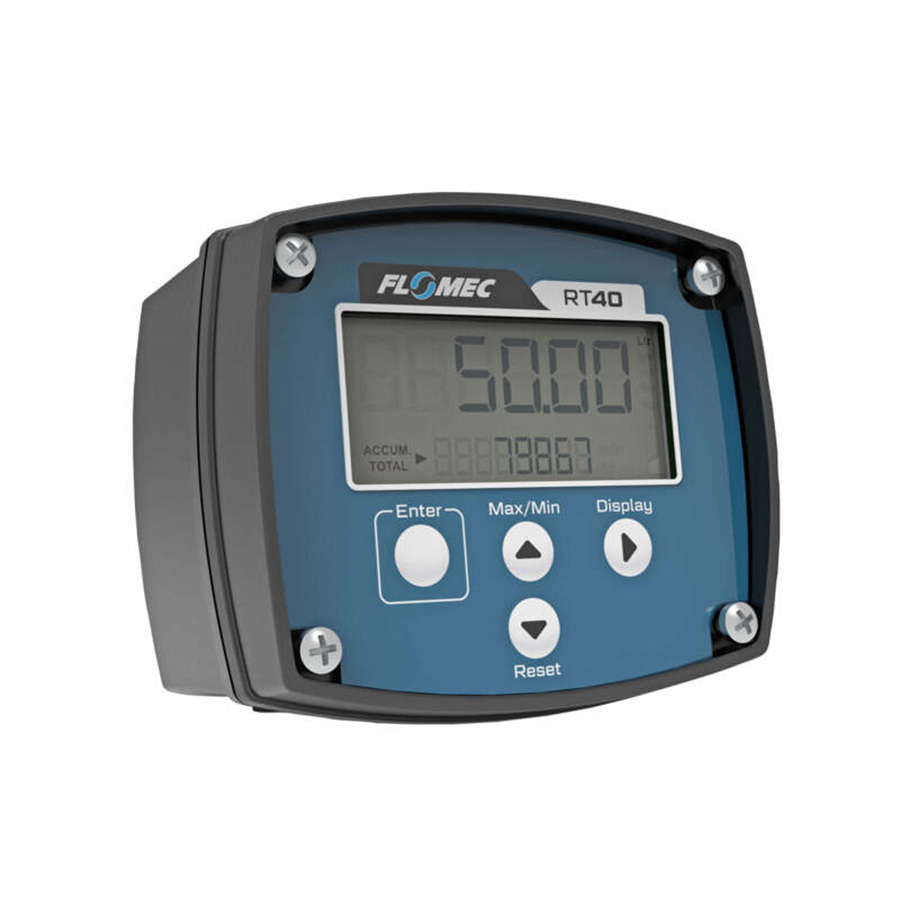

RT40 Flow Rate Totalizer
RT14 Multiple Output Flow Rate Totalizer
- Battery powered display for Flomec G2, TM, and A1 Series
- Flow Meters 4-20 mA and scaled pulse
- FM Class 1, Div 1; ATEX; IECex
- Simple display to read flow rate or totalised volume for FLOMEC Oval Gear, Turbine and Insertion flow meters
- IP65-66/67
- With signal output
- Display that can interface with external control or monitoring equipment.
- 4-20mA analogue output
- IP66/67-NEMA4X
- With signal output
- Optional with ATEX
Batch Controllers
EB11 Dual Stage Batch Controller “EasyBatech”

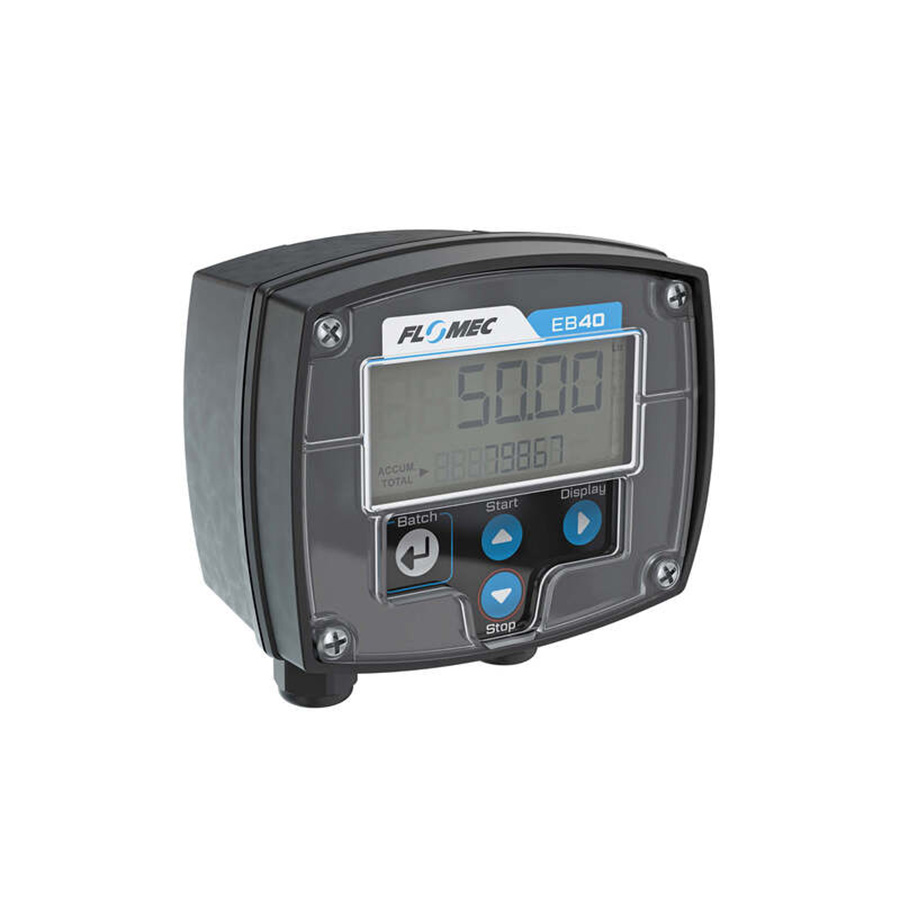

EB40 Single Stage Batch Controller
- Easy to use dual stage batch controller for FLOMEC® oval Gear and Turbine flow meters
- Weather-resistant IP66/67
- NEMA4X enclosure
- Easy to use single stage batch controller for FLOMEC® oval Gear and Turbine flow meters
- Store up to 10 frequently recipes
- weather-resistant IP65-66/67
- NEMA4X enclosure
- ATEX/IECEx
Displays available from stock:
B-Series
C-Series
D-Series
E-Series
F-Series
N-Series
