Gear Pumps

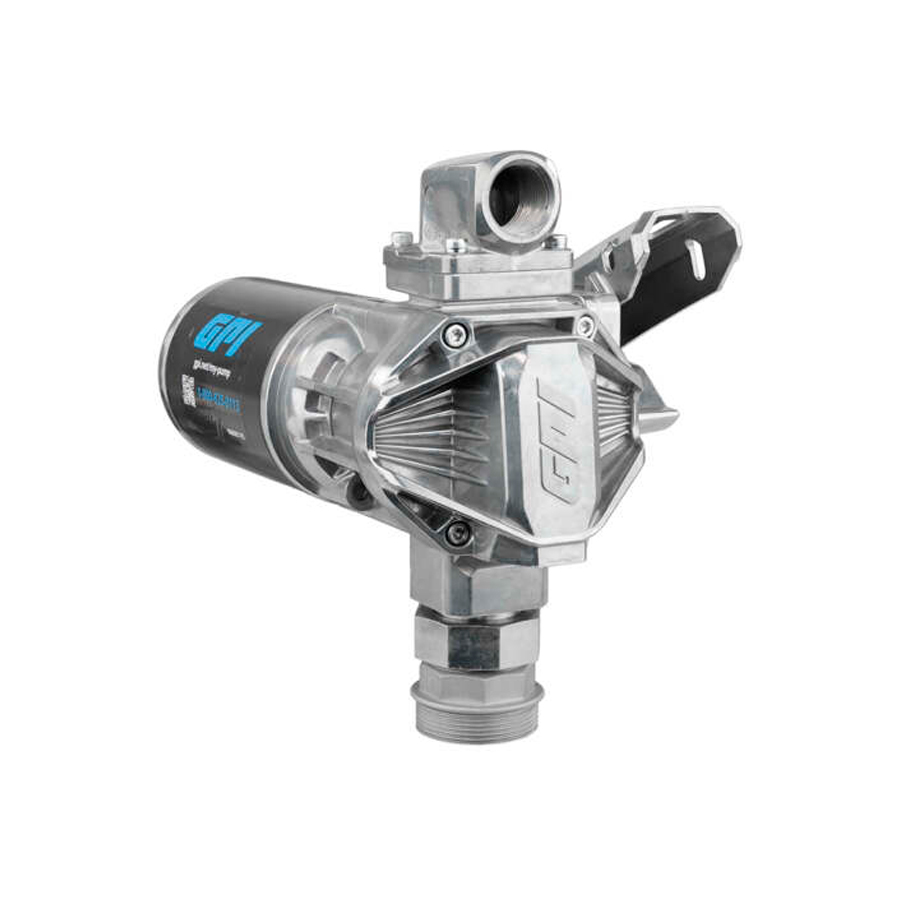

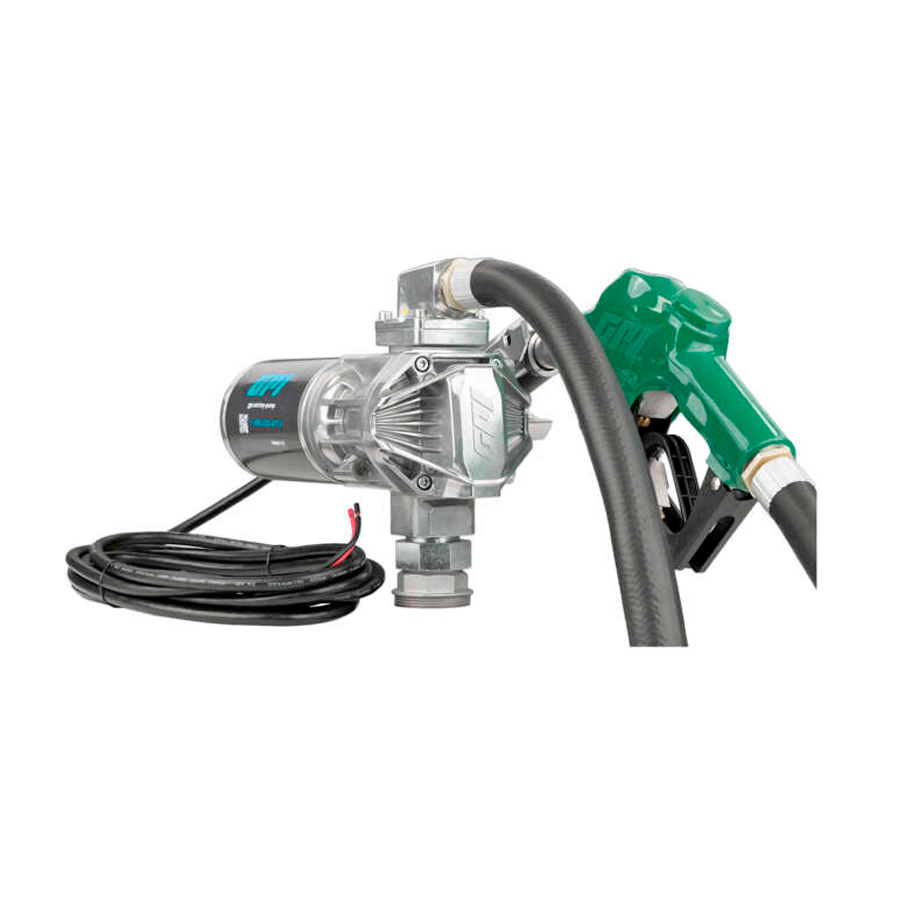

The G20 gear pump is the first gear pump that delivers 76 l/min (20 GPM) and is available in three versions. Its new, innovative design features simplified connection points that make attaching accessories fast and easy. The unique rotary gear design ensures long product life with minimal maintenance.

The G20 is durable, manufactured from high-quality die-cast aluminum, easy to use, and engineered to last, featuring a self-priming rotary gear design.

Designed, tested, and approved for use with gasoline blends (up to E15), diesel blends (up to B20), and kerosene.

Features

How does a

gear pump work?

ATTRIBUTES

Flow rates of up to 76 l/min (20 GPM).
Compatible fluids: Gasoline blends (up to E15), diesel blends (up to B20), and kerosene.
Modular Quick-Fit solution makes it easy to attach a filter, meter, or both to build your custom system.
Lightweight die-cast aluminum housing (approx. 9 kg), resulting in low stress on the tank
Drip catcher, lockable nozzle holder keeps your vehicle and tanks clean and prevents fuel theft.
Gear metering principle - fewer moving parts thus low maintenance and longer pump life.
Factory installed power cord saves installation time.
Rotating bracket makes installation and pump alignment easy. Pump fits any tank with 2" NPT connection.
Approvals:
ATEX-ANNEX VIII
(IECEx Ex db IIA T4 Gb / CE ATEX II 2 G Ex db IIA T4 Gb DEMKO 19 ATEX 2113X)
cULus Motor Listed for Hazardous Locations Class I, Division 1, Group D USA and Canada

Gear pumps work according to the positive displacement principle. The liquid is sucked in on one side and transferred further on the outlet side with constant pressure.

When the gears are driven, a vacuum is created, causing the liquid to be drawn in. The liquid is then conveyed between the housing and the gear wheels. With this principle, the two gears fill each other up with liquid, ensuring uniform pulsation-free pump delivery.

Leakage currents (gap losses) occur between the gear tips and the housing wall.

These depend on the design (precision), temperature and density of the liquid, etc.

Modular design
Robust construction for low maintenance
Wide range of accessories, nozzles, filters, hoses, flow meters.
Gear pumps last approximately 3 times as long as vane pumps, but gear pumps have a gap loss. This means that they generally cannot build up as much pressure to pump more than 1.8 meters deep.
Easy to install
Field serviceable, approximately 10 minutes to change gears or sensor.
Die-cast aluminum and powder coated body, about 30% lighter and corrosion resistant.
