Turbine meters / turbine flow meters are precise and cost-effective measuring instruments for measuring low- and medium-viscosity liquids and gases. The robust measuring principle can measure the flow of a wide range of clean liquids.

The plastic versions are suitable for most water-based liquids, the stainless steel versions for corrosive liquids. The aluminum meters are designed for fuels and additives. In addition, gases such as argon can be measured.

Turbine Meter

FEATURES

How does a

turbine meter work?

ATTRIBUTES

Flow range from 1.8 liters/minute up to 4500 liters/minute
Measuring accuracy: ± 0.5% of reading
Repeatability: ± 0.1%
Suitable for measuring low-viscosity media <100 cp
Meter materials: aluminum, brass, stainless steel, PVC, PVDF and PPS

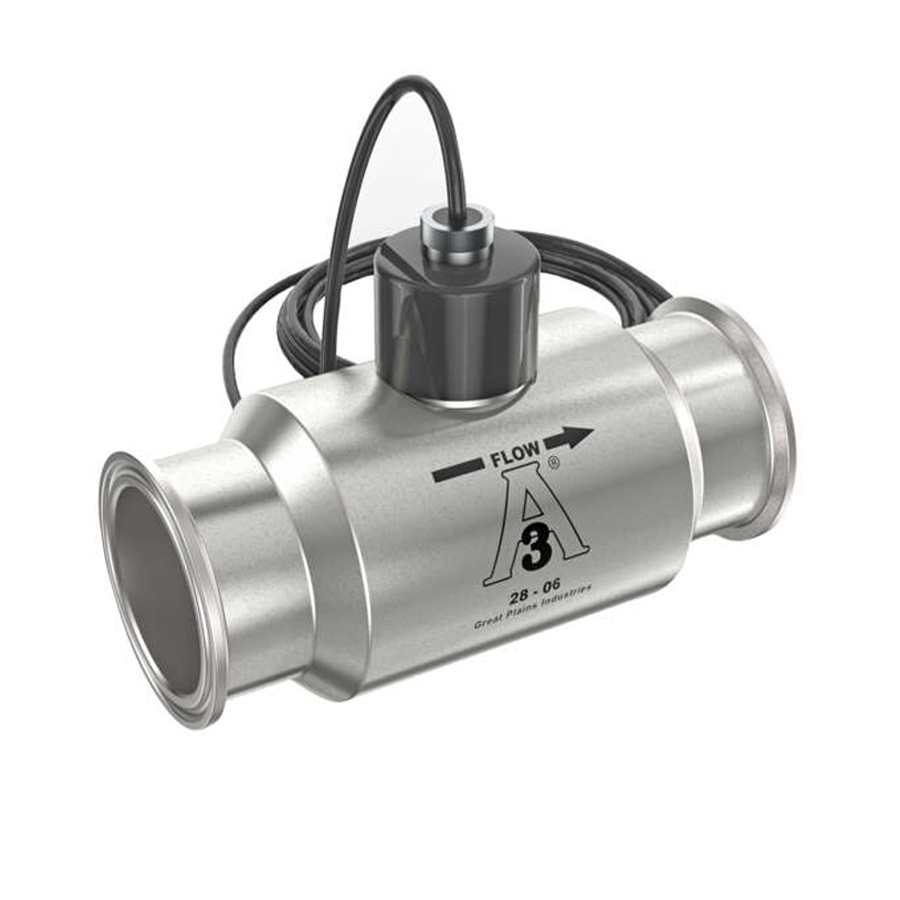

Stainless steel version with 3A approval (CIP / SIP)
Temperature range: -268 °C up to 426 °C
High pressure versions up to 340 bar available
Specific meter versions for use in ATEX & IECEx, and Intrinsically Safe (IS) areas

The medium flowing through the measuring device acts on the turbine blades, which can rotate freely around an axis in the center line of the turbine housing. The angular (rotational speed) of the turbine rotor is directly proportional to the speed of the medium flowing through the turbine. The pulses are linear to the flow and are taken from one or more electrical sensors mounted on the housing of the measuring device.

• Robust construction and compact design

• High-quality tungsten carbide or ceramic bearings with low wear and a long lifetime

• Variable use thanks to different sensors as well as a variety of connections and nominal diameters

• Low pressure drop

• Corrosion-resistant materials

• Stainless steel version for many water and food applications as well as for chemicals and fuels

• Aluminum for petroleum-based liquids

• PVDF for aggressive chemicals
