Ultrasonic Doppler

Flow Meter

Ultrasonic Doppler flow meters enable reliable, non-contact measurement of volumetric flow without interfering with the process. Thanks to clamp-on technology, installation is quick and does not require any process interruption. Ultrasonic Doppler flow meters are particularly well-suited for liquids such as process water containing solids or gas bubbles, slurries and sewage sludge, pulp and paper fiber suspensions, lyes, sand-water mixtures, chemicals containing solids, and wastewater.

Features

How does an Ultrasonic

Doppler Flow Meter?

Attributes

  • Precise flow measurement using ultrasonic Doppler technology for flumes, and partially filled pipes
  • Wide flow velocity measurement range from approx. ±0.03 m/s to 12.2 m/s – suitable for virtually all applications
  • High measurement accuracy and repeatability (up to ±2%, reproducibility ±0.1%, linearity ±0.5%)
  • Adaptive signal processing with signal quality monitoring for stable and valid measurement results
  • Robust, fully encapsulated sensor technology (IP68) – ideal for continuous use in wastewater and industrial applications
  • Flexible system integration via RS485 / Modbus as well as analog and digital outputs
  • Integrated data logger with high storage capacity for long-term process monitoring and analysis
  • Quick startup and easy configuration via the integrated display and control panel

Ultrasonic Doppler flow measurement is a proven method for measuring flow in open channels, flumes, and partially filled pipes.

A sensor emits ultrasonic waves that are reflected by particles in the medium. The flow velocity is determined using the Doppler effect, while the level is measured simultaneously.

The system uses both values to precisely calculate the flow rate and total volume.

Ideal for wastewater, contaminated media, and industrial applications — reliable even under fluctuating conditions.

  • Enhanced performance
  • Easy to install and configure
  • Non-Contacting, clamp-on, ultrasonic sensor
  • Works on a large variety of pipe materials and sizes
  • Integrated data logger with high storage capacity for long-term process monitoring and evaluation
  • Quick commissioning and easy parameterization via integrated display and control panel

IN OUR PORTFOLIO

Pulsar Ultrasonic Doppler Flow Meter available from stock:

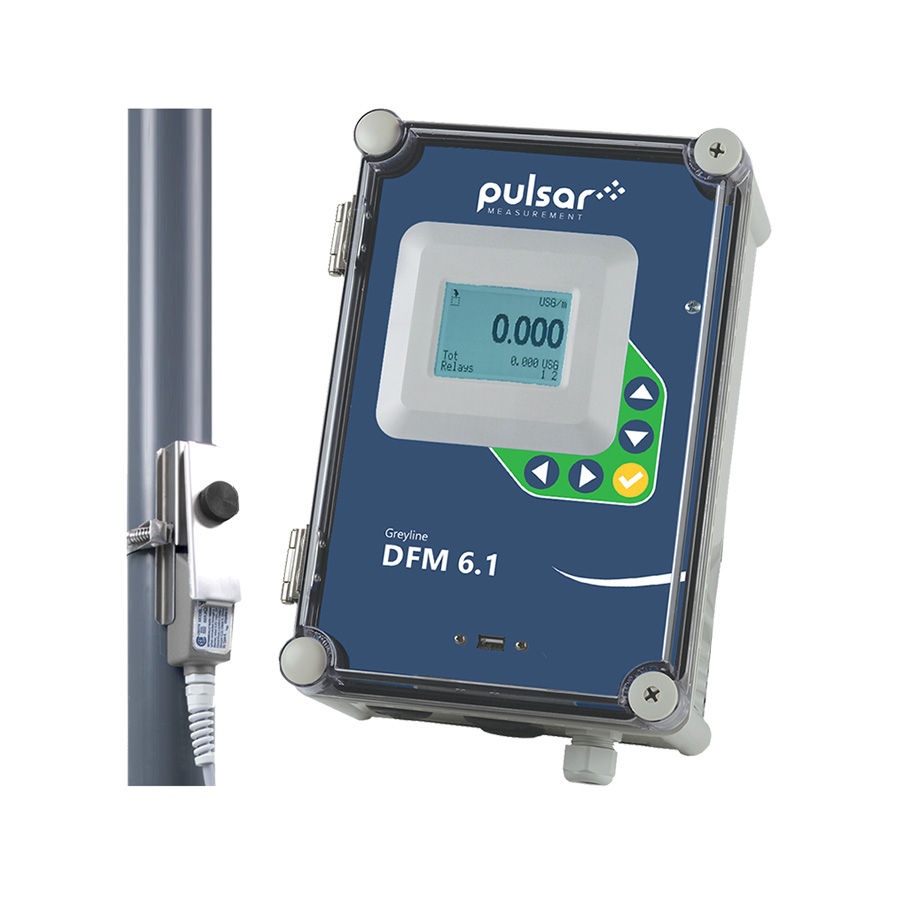

Pulsar DFM 6.1
Doppler Flow Meter

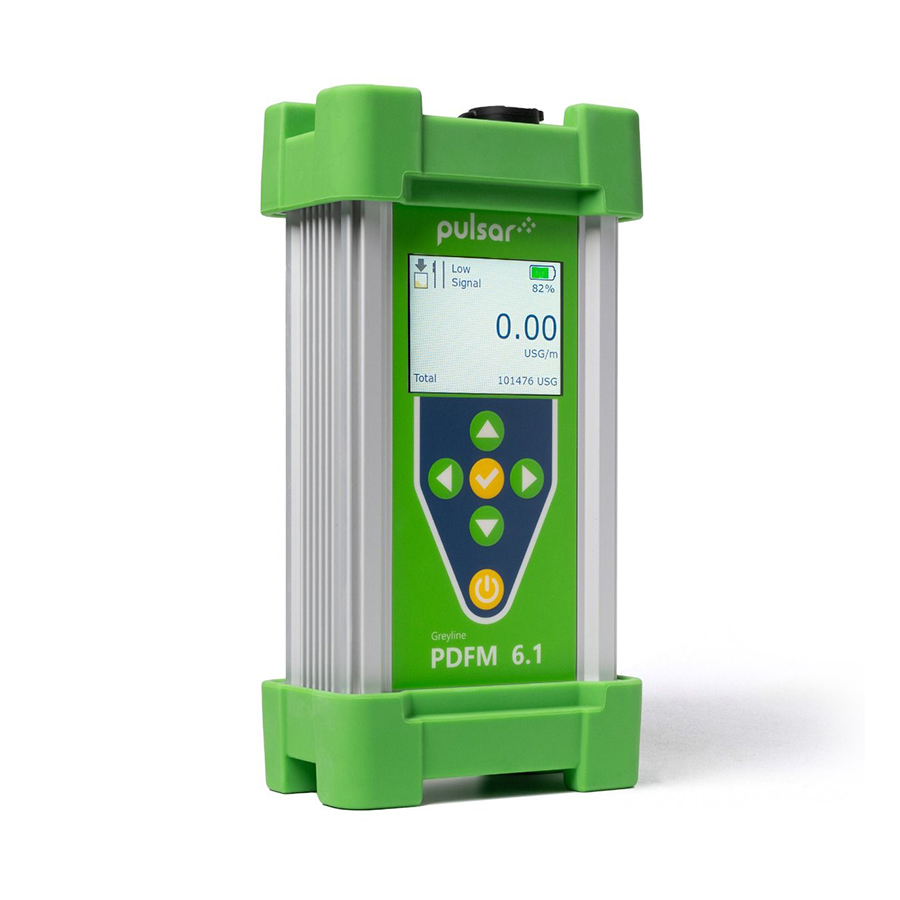

Pulsar PDFM 6.1

Portable Doppler Flow Meter

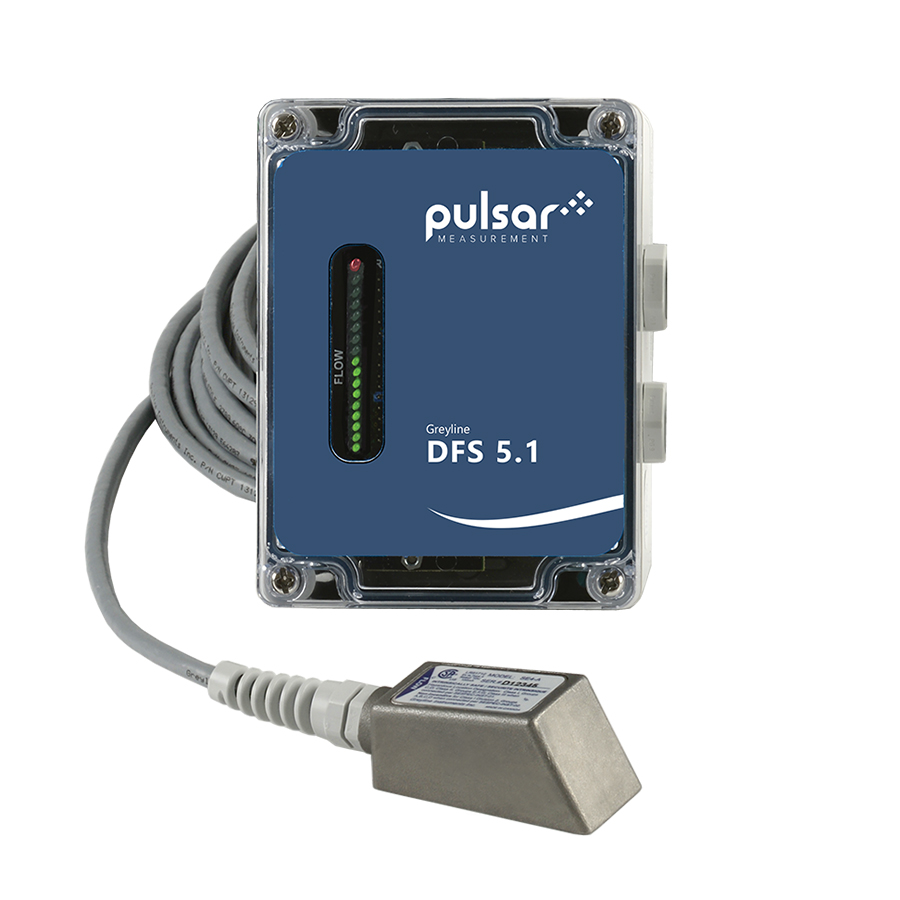

Pulsar DFS 5.1

Doppler Flow Switch



Stationary, non-invasive flow measurement of “difficult” to measure fluids with IP66.



4-20 mA, Modbus RTU , HART, optional  ATEX Zone 0



For wastewater, slurries, and sewage sludge; pulp suspensions and abrasive fluids.

Portable, non-invasive flow measurement of “difficult” to measure fluids with IP67.



For raw sewage, aerated water, slurries and pulp stock.

Inexpensive & noninvasive

flow switch for “difficult” to measure fluids with IP67.



For Sewage, Sludge, Slurries, Pulp stock and liquors

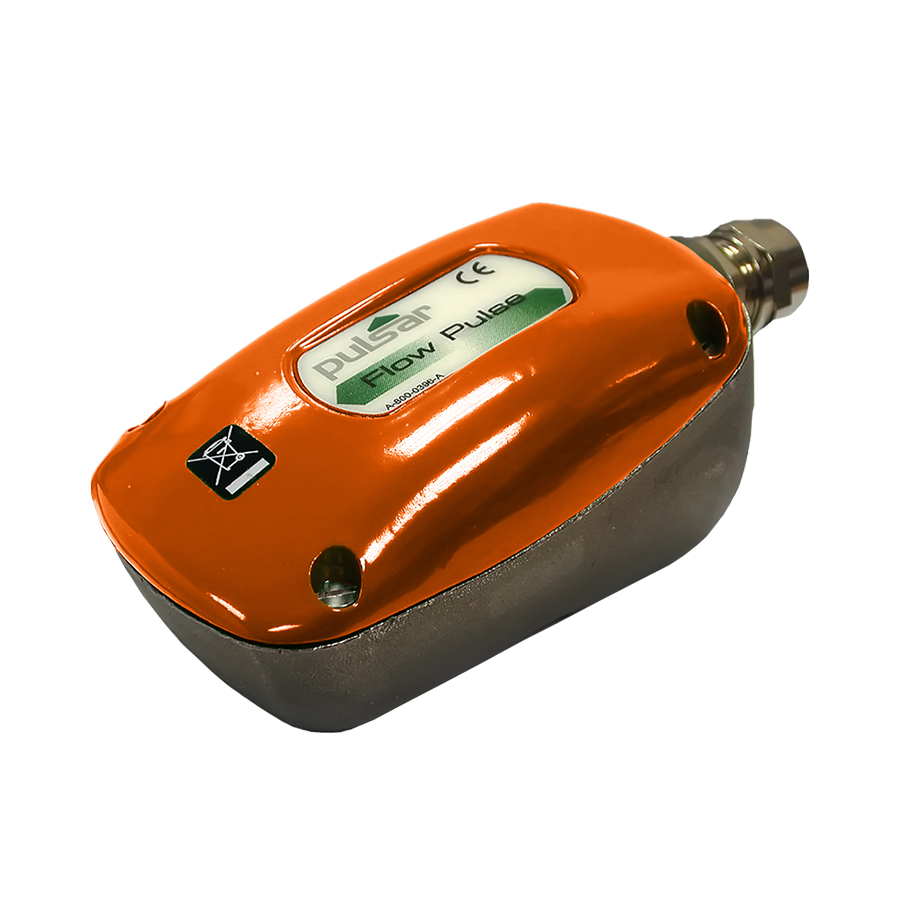

Pulsar FLOWPULSE SENSOR

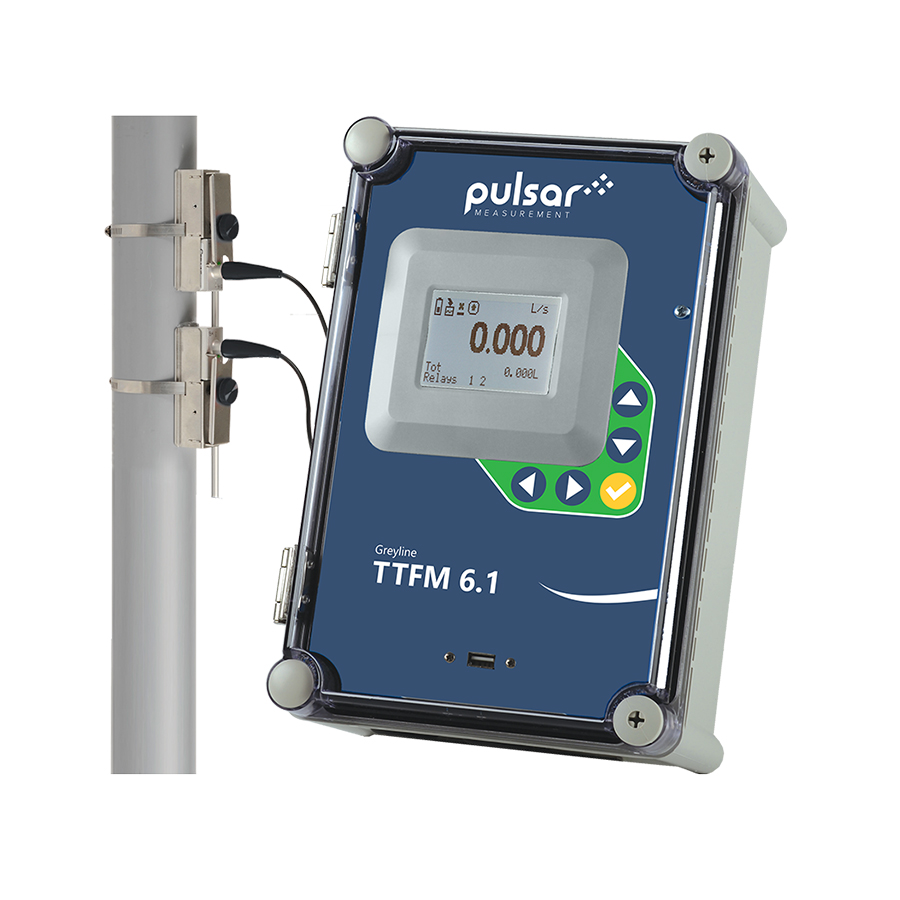

Pulsar TTFM 6.1

Transit-Time Flow Meter

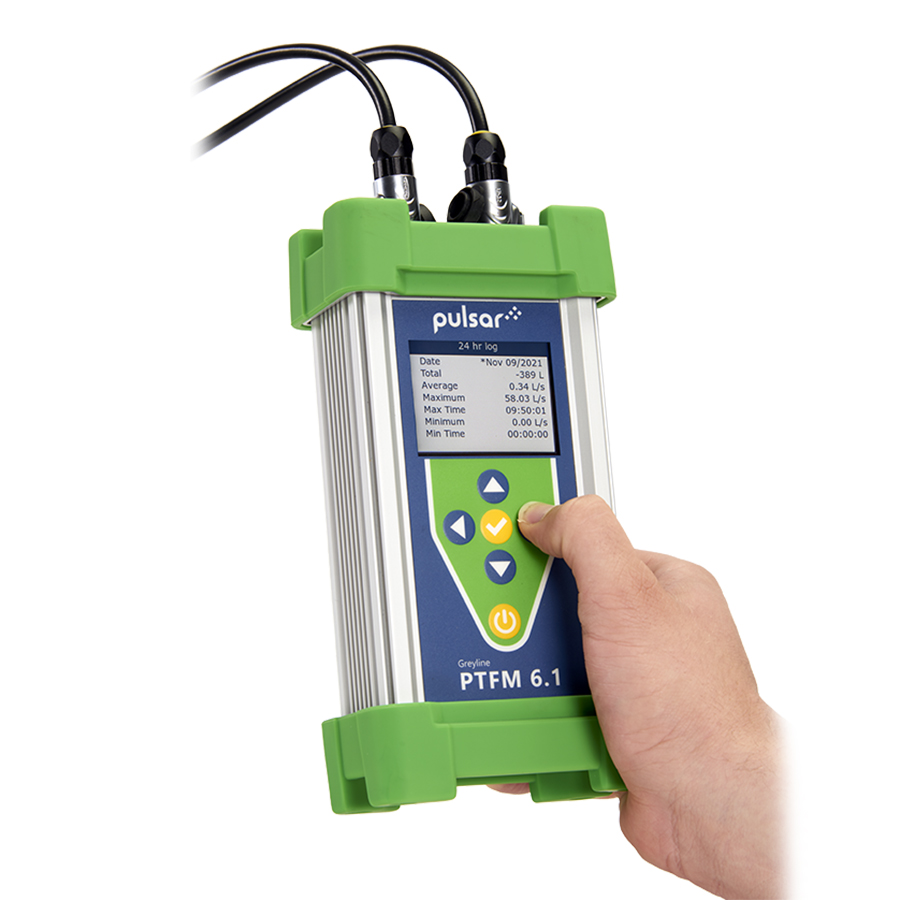

Pulsar PTFM 6.1 portable flow measurements

Non-invasive for simple and costeffective installation.



For Pipe flow monitoring , Influent pipe flow,  Process effluent.

Non-invasive flow

measurement of “clean” fluids with IP66.



4-20 mA, Modbus RTU , HART, optional  ATEX Zone 0



For Treated water, Raw water, Cooling water and Chemicals.

Portable, Non-invasive flow measurement of “clean” fluids with IP67.



For Treated water, Raw water, Cooling water and Chemicals.
